Kalmar Ottawa Models for Sale
Kalmar Ottawa, a subsidiary of Cargotec, produces a comprehensive range of yard tractors designed for handling containers and trailers. These adaptable machines are utilized in ports, terminals, and distribution centers across various industries.

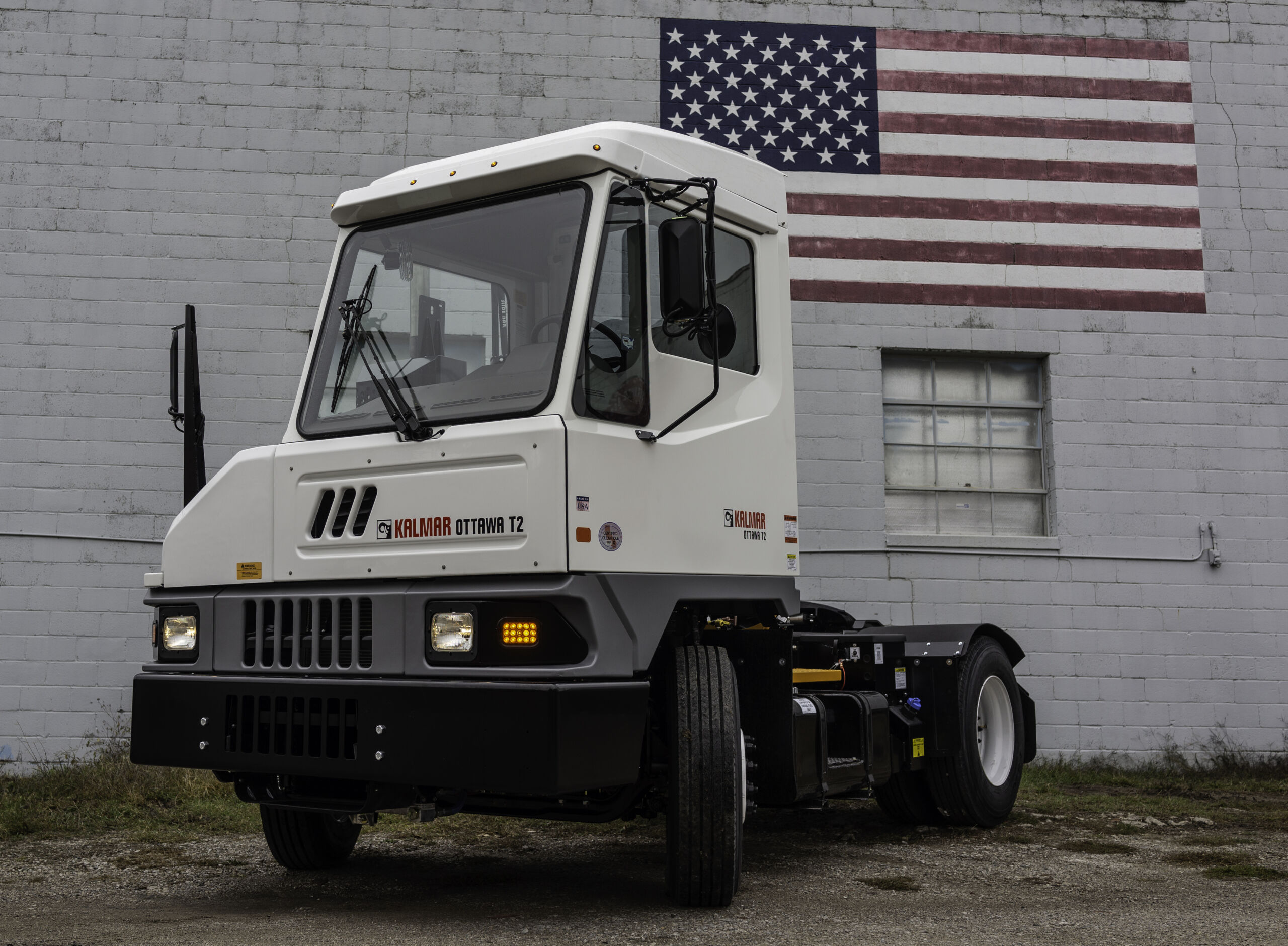

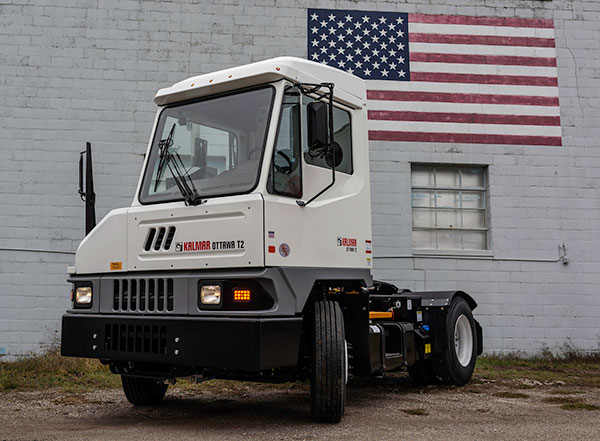

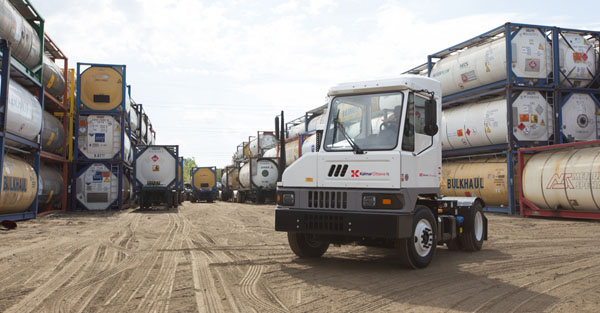

Kalmar Ottawa 4×2 DOT/EPA Terminal Tractor
- Ground-level service points and systems access available through cab panels for easier serviceability
- Tapered 3-leaf springs for a smoother ride
- Taller and wider doors for easier exit and entry
- Open C channel chassis design provides more strength, better protection, and less maintenance
- Suspended control pedals for better operator feel and control
- Increased visibility with more ergonomic cab
- Engine: Cummins ISB6.7-200 HP (2015) with OBD, clean idle certified @ 2,300 RPM, 520 lbs./ft. torque @ 1,600 RPM
- Faster and stronger fifth-wheel lifting, with spherical bearings on both bottom and top
- Larger, roomier, and more comfortable cab environment with everything in easy reach

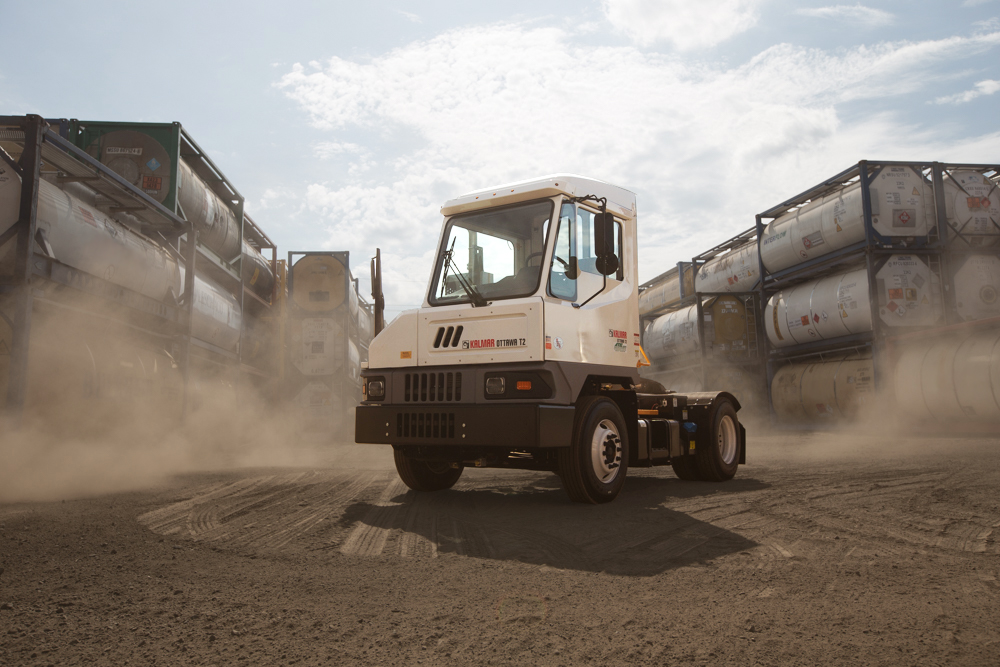

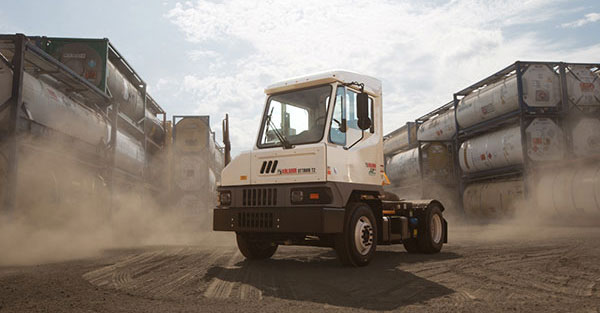

Kalmar Ottawa 4×2 Off Road Terminal Tractor
- Ground-level service points and systems access available through cab panels for easier serviceability
- Tapered 3-leaf springs for a smoother ride
- Taller and wider doors for easier exit and entry
- Open C channel chassis design provides more strength, better protection, and less maintenance
- Suspended control pedals for better operator feel and control
- Increased visibility with more ergonomic cab
- Engine: Cummins tier final QSB6.7-164 HP @ 2,300 RPM, 540 lbs./ft. @ 1,500 RPM
- Faster and stronger fifth-wheel lifting, with spherical bearings both bottom and top
- Larger, roomier, and more comfortable cab environment with everything in easy reach

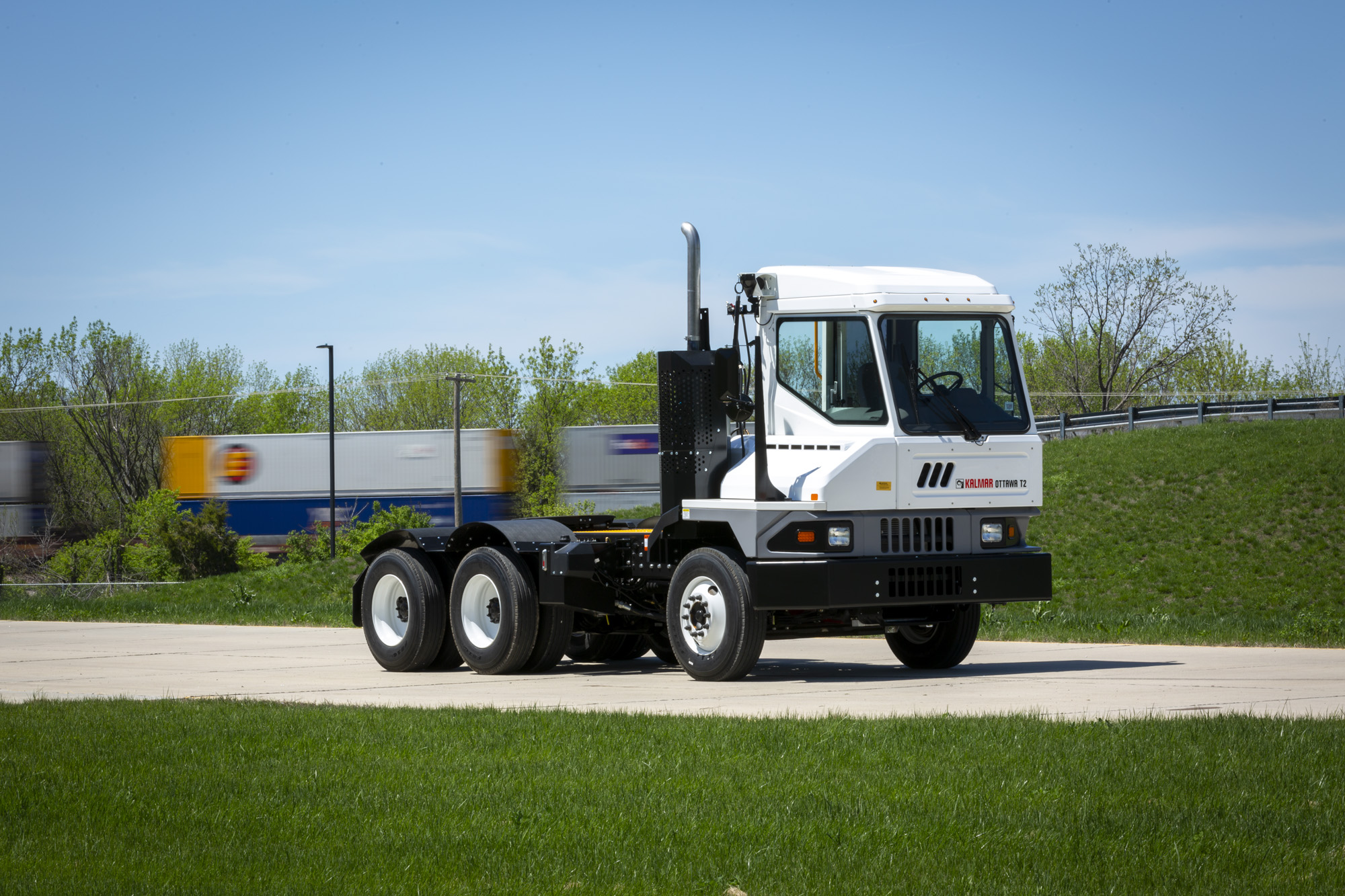

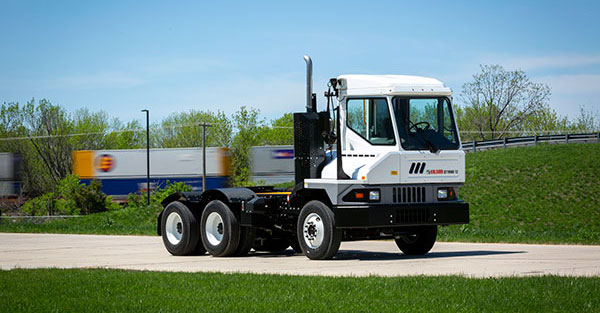

Kalmar Ottawa 6×4 DOT/EPA Terminal Tractor
- 146″ Wheelbase 6×4 DOT/EPA certified
- Max speed 31-33 mph without ABS, 45 mph with ABS
- Meritor FF961 front and RT-40-145 rear axles
- Cummins ISB6.7 200 HP 2013 clean idle certified @ 2,300 RPM, 520 lbs./ft. @ 1,600 RPM
- GCWR 81,000 lbs.
- Allison 3000RDS 6-speed automatic transmission
- 5″ Hydraulic cylinders -17″ lift, 60,000-lb. rating
- Holland FW-35-70,000 lbs. plate rating fifth-wheel

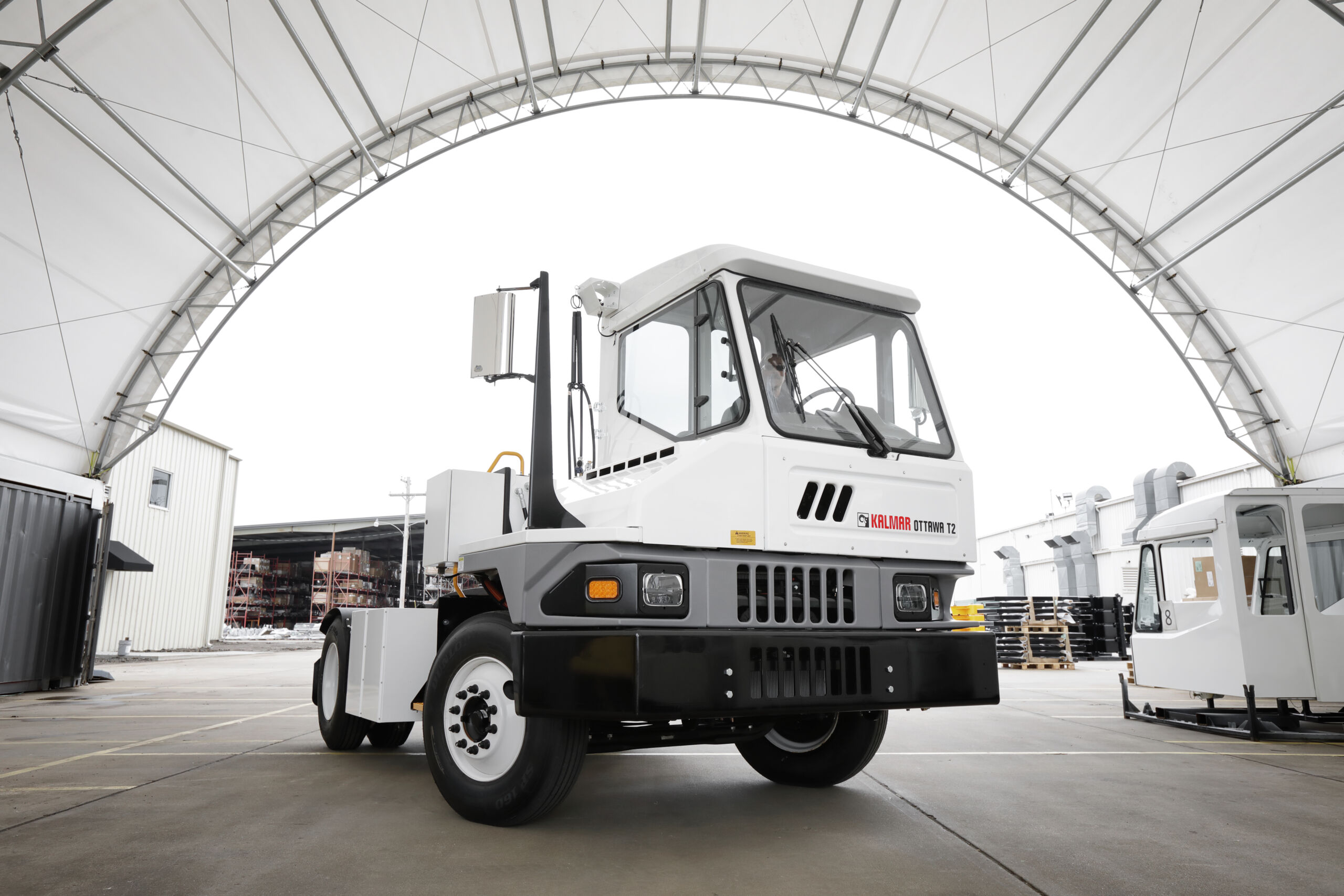

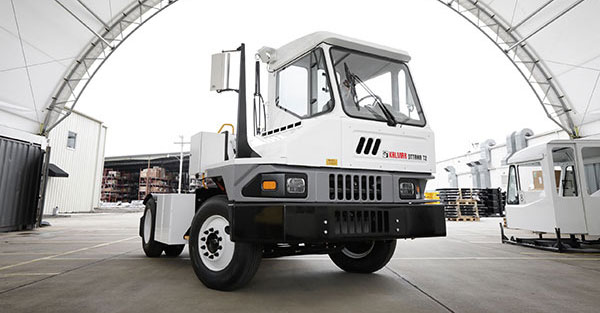

Kalmar Ottawa T2E+ Electric Terminal Tractor
- Frame/chassis – 14″ X 4.25″ X 3.5″ steel 50,000 PSI 3/8″ formed C-channel
- 126″ Wheelbase
- Holland FW-35 fifth-wheel with 7,000 lbs. plate rating
- Meritor FF-961 12,000 lbs. rated front axle and Meritor RS-24-160 30,000 lbs. rated rear axle
- Pneumatic: 12 CFM (constant) air compressor; 6,400 cu. in. total reservoir capacity
- 160 kW electric drive motor
- 6-speed automated transmission
